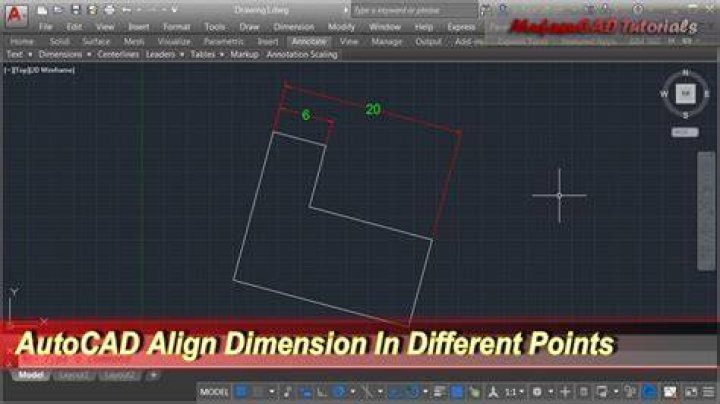

How do you align in AutoCAD?

To Align two Objects in 2D

  1. Click Home tab Modify panel Align. Find.
  2. Select the objects that you want to align.
  3. Specify a source point and then the corresponding destination point. To rotate the object, specify a second source point followed by a second destination point.
  4. Press Enter to end the command.

How do you rotate and align in AutoCAD?

Type in ALIGN command and select the object that you want to rotate. At Specify first source point: Click the base point of the object that you want to rotate. Then select first destination point, which can be at any point of the reference line of which you wish the object to align to.

How do you align attributes in AutoCAD?

Here’s how:

  1. AATTR to start (Align ATTRibute)
  2. Specify the alignment direction Vertical or Horizontal.
  3. Select the Attribute that the others will be aligned to.
  4. Select the rest of the attributes that are to be aligned.

How do you equally space an object in AutoCAD?

Click Home tab Modify panel Align drop-down Space Evenly. Select an edge as the axis along which to space all the objects evenly, and specify a start point and an endpoint along the edge; or press Enter, and specify two points between which the objects will be spaced evenly from each other.

How do you rotate freely in AutoCAD?

To Rotate an Object

  1. Click Home tab Modify panel Rotate. Find.
  2. Select the object to rotate.
  3. Specify the base point for the rotation.
  4. Do one of the following: Enter the angle of rotation. Drag the object around its base point and specify a point location to which you want to rotate the object.

How do you rotate a drawing in AutoCAD?

How do I align text in Autocad Electrical?

Select two or more objects to align and press Enter. Sets the alignment orientation. This value is stored in the TEXTALIGNMODE system variable. Select the text object to which others should align.
