How do you draw a state machine diagram?

  1. 5 Steps to Draw a State Machine Diagram.
  2. Step 1 – Define States.
  3. Step 2 – Describe States.
  4. Step 3 – Draw Transitions.
  5. Step 4 – Define Transition Triggers.
  6. Step 5 – Define Guard Conditions.
  7. Additional Examples of State Machine Diagrams.

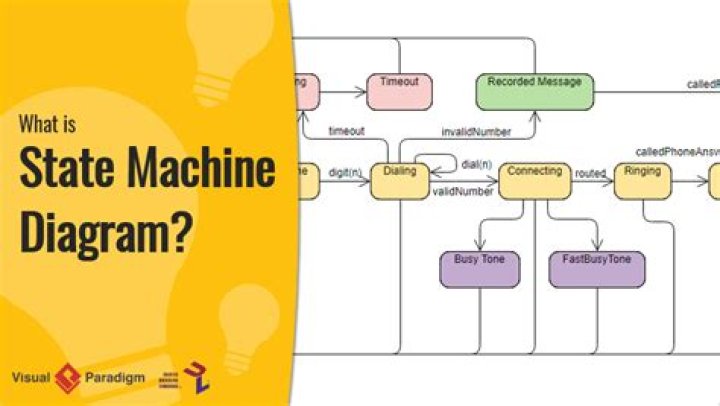

Which diagram shows a state machine?

UML State Machine
UML State Machine Diagram. The state machine diagram is also called the Statechart or State Transition diagram, which shows the order of states underwent by an object within the system.

How do you model using state machine diagrams?

Creating a State Machine Diagram Select Diagram > New from the tool bar. In the New Diagram window, select State Machine Diagram, then click Next. you can use the search bar above to filter results. Name the diagram, then click OK.

What is state machine design?

DESIGN OVERVIEW. In layman’s terms a state machine is a logic array with inputs and outputs, such that the outputs depend not only on the present inputs, but also on a past history of inputs and outputs.

What are the components of state diagram?

Basic components of a statechart diagram –

  • Initial state – We use a black filled circle represent the initial state of a System or a class.
  • Transition – We use a solid arrow to represent the transition or change of control from one state to another.
  • State – We use a rounded rectangle to represent a state.

What is the purpose of a state machine diagram?

State machine diagram typically are used to describe state-dependent behavior for an object. An object responds differently to the same event depending on what state it is in.

How do you read state diagrams?

State Diagram The binary number inside each circle identifies the state the circle represents. The directed lines are labeled with two binary numbers separated by a slash (/). The input value that causes the state transition is labeled first. The number after the slash symbol / gives the value of the output.

What is a state machine programming?

A state machine is a programming architecture that allows dynamic flow to states depending on values from previous states or user inputs. This architecture is suitable for applications that can be described as a combination of: States. Decision-making logic that determines when to move to a particular state.
