How do you find essential prime implicants using K-map?
All groups of adjacent minterms formed in a K-map are called prime implicants. A groups of adjacent minterms in K-map is called an essential prime implicant if this group has a minterm that is not covered by any other groups or prime implicants.
How many essential prime implicants are there in the K-map?
In terms of Karnaugh maps, distinguished 1-cells are 1’s that are circled by only 1 prime implicant. A prime implicant that that includes one or more distinguished one cells. Essential prime implicants are important because a minimal sum contains all essential prime implicants….Karnaugh Maps.
| A | B | |
|---|---|---|
| 0 | 1 | A’B |
| 1 | 0 | AB’ |
| 1 | 1 | AB |
What are the essential prime implicants?
Essential prime implicants (aka core prime implicants) are prime implicants that cover an output of the function that no combination of other prime implicants is able to cover. The sum of all prime implicants of a Boolean function is called its complete sum, minimal covering sum, or Blake canonical form.
What are prime implicants with example?

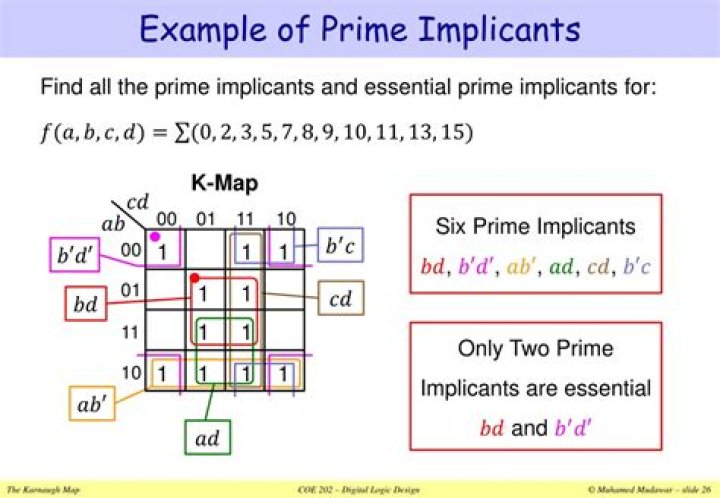

The largest possible circles are prime implicants. For example, in the K-map of Figure 2.44, A ¯ B ¯ C ¯ and A ¯ B ¯ C are implicants, but not prime implicants. Only A ¯ B ¯ is a prime implicant in that K-map.
How do you find Implicants on a K map?
E.g., consider a boolean function, F = AB + ABC + BC. Implicants are AB, ABC and BC. A group of square or rectangle made up of bunch of adjacent minterms which is allowed by definition of K-Map are called prime implicants(PI) i.e. all possible groups formed in K-Map.
What is Minterm in K map?
Minterm. A minterm is a Boolean expression resulting in 1 for the output of a single cell, and 0s for all other cells in a Karnaugh map, or truth table. If a minterm has a single 1 and the remaining cells as 0s, it would appear to cover a minimum area of 1s.
What are K map Implicants?
A group of one or more 1’s which are adjacent A group of one or more 1s which are adjacent and can be combined on a Karnaugh Map is called an implicant called an implicant.
What is the difference between prime implicant and essential prime implicant?
The prime implicant is a minimal that has removal of any literal from product term results. On the other hand, the essential prime implicants is an prime implicant and cover an output of the function that no combination of other prime implicants to cover.
Can prime implicants overlap?
Overlap is key to determining logic redundancies. Overlap is most simply defined as the area on a Karnaugh map where two prime implicants exhibit crossover.
How do you find the prime implicants and essential prime implicants?
Procedure for Finding Prime Implicants. 1) Find prime implicants by finding all permitted (integer power of 2) maximum sized groups of min-terms. 2) Find essential prime implicants by identifying those prime implicants that contain at least one min-term not found in any other prime implicant.
