How do you use object snap tracking in AutoCAD?
Use object snap tracking with temporary tracking points. At a point prompt, enter tt, then specify a temporary tracking point. A small + appears at the point. As you move your cursor, AutoTrack alignment paths are displayed relative to the temporary point.
What is object snap in AutoCAD?
Object snaps provide a way to specify precise locations on objects whenever you are prompted for a point within a command. For example, you can use object snaps to create a line from the center of a circle to the midpoint of another line. You can specify an object snap whenever you are prompted for a point.
What is the difference between object snap and object snap tracking?
Snap is for a background grid (you can turn it on and off with the “Grid” command). Osnap is “object snap”, and it’s all about snapping to something else, like lines, midpoints, center of circles and so forth. Try the command “osnap”, it’ll bring forth a nice menu showing the possibilities.
What shortcut key Turns object snap tracking on and off?
Object Snap Tracking (Status Bar Button)
| Object Snap Tracking is turned on (default). | |
|---|---|
| Object Snap Tracking is turned off. | |
| Linked To | AUTOSNAP |
| Shortcut Key | F11 |
| Previous Label | OTRACK |

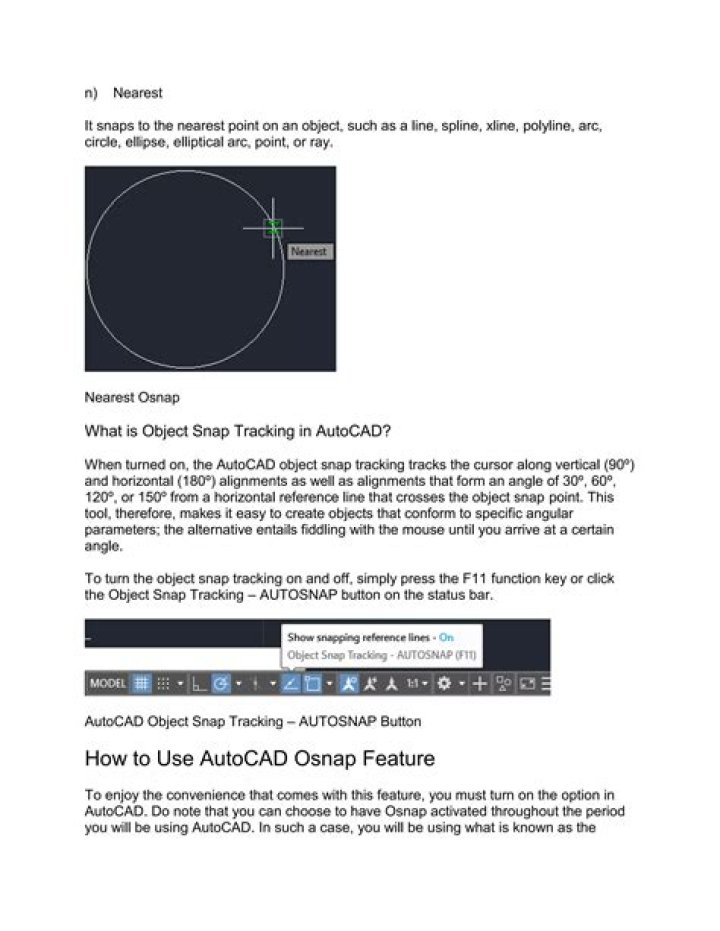

What is the use of object snap tracking?
Tracks the cursor along vertical and horizontal alignment paths from object snap points. Right-click the button to specify the object snap points from which to track. Object Snap Tracking is turned on (default).
How do you use snap objects?
Use Running Object Snaps
- On the status bar, click the Object Snap button or press F3 to turn running object snaps on and off.
- On the status bar, click the down-arrow next to the Object Snap button, and then click the object snaps that you want to persist. Find.
How do I enable snap in AutoCAD?
Under Snap Type, make sure Grid Snap and Rectangular Snap are selected. In the Snap X Spacing box, enter the horizontal snap spacing value in units. Note: The check box, Equal X and Y Spacing, applies to both snap and grid spacing. Modify other settings as needed.
What is the difference between snap and object snap?
What difference between these two commands? snap is an incriment tool, it alows you to move work in specific increments, the increments can be chaged at any time. osnap is object snap, snaps to a specific part of an object.
Which function key enables object snap in AutoCAD *?
Function Key Reference
| Key | Feature | Description |
|---|---|---|
| F1 | Help | Displays Help for the active tooltip, command, palette or dialog box. |
| F2 | Expanded history | Displays an expanded command history in the Command window. |
| F3 | Object snap | Turns object snap on and off. |
| F4 | 3D object snap | Turns additional object snaps for 3D on and off. |
What is the shortcut command for a snap?
Select the window you want to snap and press the Windows Logo Key + Left Arrow or the Windows Logo Key + Right Arrow to snap the window to the side of the screen where you want it to be. You can also move it to a corner after snapping it.
Why Ortho mode is used?
Ortho mode is used when you specify an angle or distance by means of two points using a pointing device. In Ortho mode, cursor movement is constrained to the horizontal or vertical direction relative to the UCS.
