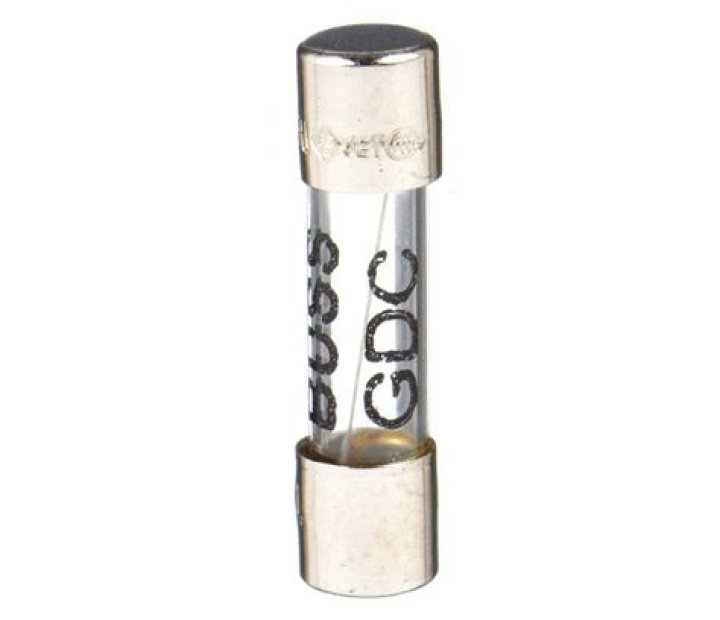

What is a GDC fuse?
GDC – IEC 5mm X 20mm Time-Delay Glass Tube Fuse. Automotive: Used in older-model cars, glass tube fuses today are found primarily in automotive accessory applications. In general, fast-acting fuses are a single strand of wire or strip of metal.
What does SC mean on a fuse?
SC-(amp) Description: Basic protection Class G size-rejecting, current limiting fuses. 1/2 to 6A Fast-acting, 7 to 60A time-delay. Time-delay – 12 seconds (minimum) at 200% of rated current.
What does AGC stand for on a fuse?
Datasheet. Originally stood for “all glass.” The automotive industry uses the “AG” prefix (AGC, AGW) for most glass fuses. They vary in length, diameter and amperage rating.
What is Class G fuse?
What is a Class G, Fuse? A UL Class G fuse is a 600/480 volts AC current limiting, fuse that is rated to interrupt a minimum of 100,000 amps. Ampere ratings range from ½ amp to 60 amps. The type G fuse meets the NEC, requirements for branch circuit, protection.
What is class P fuse?
Standard non-time delay fuses are for receptacle and lighting circuits. For Canadian requirements, a type “P” fuse is used for non-motor loads and type “D” fuses are used for electric heating and cycling loads circuits. Both fuses have low melting-point temperature elements.
