What is Cisco Nexus 2000?

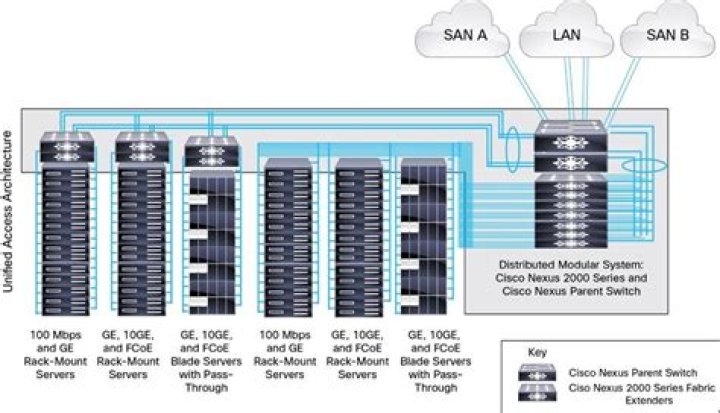

Posted on April 12, 2018 by RouterSwitch Tech | 0 Comments. The Cisco Nexus 2000 Fabric Extenders behave as remote line cards. They appear as an extension to the parent switch to which they connect. The parent switch can be Nexus 5000, Nexus 6000, Nexus 7000, and Nexus 9000 Series switches.
What is fabric extender transceiver?
A Fabric Extender (FEX for short) is a companion to a Nexus 5000 or Nexus 7000 switch. They are fully managed as part of the parent switch and do not require independent software upgrades, config backups, or other maintenance tasks.
What is Fex in Nexus?
What Is Cisco FEX? A Cisco FEX is a companion to a Nexus 5000 or Nexus 7000 switch. That’s to say, when being connected to them, FEX thus become a logical part of the parent switch. A Cisco FEX has no management interface and has no capability to store a forwarding table or run any control plane protocols.
How do I check my Fex interface status?
You can see that many legacy commands have simply been extended with the fex argument to view information regarding a specific FEX.
- show interface fex-intf.
- show interface fex-fabric.
- show module fex all |
- show inventory fex all |
- show environment fex all |
What is Fex HIF port?
Host Interface (HIF): Front panel port on FEX, connecting to server. Logical interface (LIF): Presentation of a front panel port in parent switch.
What does a Cisco fabric extender do?
As a key component to Cisco Unified Fabric, Cisco Fabric Extender Technology comprises of technologies that enable fabric extensibility with simplified management enabling the switching access layer to extend and expand all the way to the server hypervisor as the customer’s business grows.
How many VDC we can create in Nexus?
The maximum number of VDCs that can be configured per Nexus 7000 chassis is four; the default VDC (VDC 1) and three additional VDC(s).
What is fabric in Nexus?
A fabric module connects the linecards and the supervisors together in a Nexus. So if you had a server connected to a module say in slot 3 using card N7K-F248XP-25 and it was connecting to another card in slot 4 of your 7k switch the fabric module would switch the traffic between these cards in the Nexus. 10 Helpful.
How does Fex connect to 5k?
Having established that a FEX is not a switch, let’s take a look at the process of installing a new FEX and bringing it online.
- Rack the FEX.
- Install & cable the uplinks.
- Configure a virtual port-channel and add physical interfaces.
- Apply the code below to both 5Ks.
- Next Page: Powering Up.
