What is dedicated working space above electrical equipment?
The dedicated space requirement states that an area equal to the width and depth of the equipment and extending from the floor to a height of 6 feet above the equipment or to the structural ceiling (whichever is lower) must be dedicated to the electrical installation.
What is the minimum clearance required around electrical panels?
3 feet

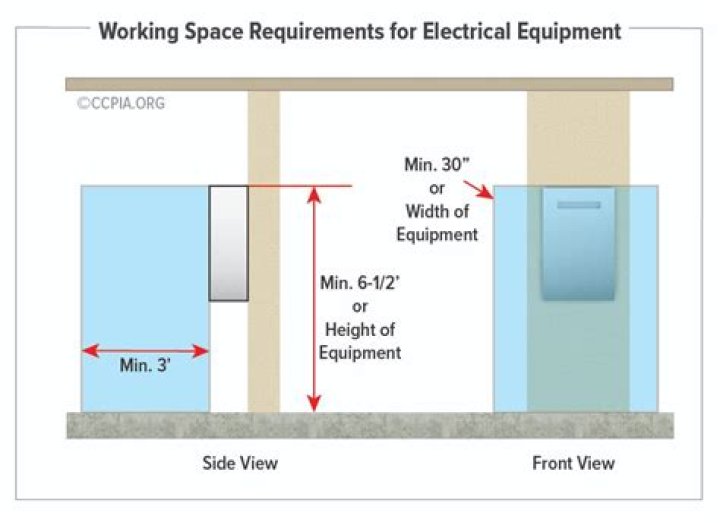

The Occupational Safety and Health Administration (OSHA) and the National Electrical Code (NEC), require that electrical panels have a minimum of 3 feet (36 inches) of clearance and a minimum headroom of 6.5 feet or the height of the equipment whichever is greater.
Does NEC 110.26 apply to Transformers?
The National Electrical Code Section 110.26 (A) Working Space states in part, “Working space for equipment operating at 600 volts, nominal, or less to ground and likely to require examination, adjustment, servicing, or maintenance while energized.” Transformers are not meant to be worked on while energized, therefore …
What is the required depth of working space at a 120 volt to ground panel that has exposed live parts on both sides of the working space?
3 feet, 6 inches
The minimum working space depth for this switchboard is 3 feet, 6 inches (see Figure 2). The third condition applies when exposed live parts are on both sides of the working space.
What is dedicated electrical space?
Dedicated space is a specific area that is devoted to the electrical installation for the purpose of installing raceways, cables and electrical equipment associated with the overall electrical installation.
How far does an electrical panel have to be away from a window?
You are required to maintain a 3′ clearance away from the drip loop of the riser on the service where the utility company squeezes on there wires. This 3′ clearance must be maintained from the sides and bottoms of any window or door that opens, and also the 3′ is required away from any deck, stoop, porch or the like.
What is code for electrical panel?
Breaker panel must be at least 4 feet off the ground, but no higher than 6 feet. The panel door must be able to open at least 90 degrees. Working space around the breaker panel must be at least 30 inches wide and 72 inches from the ground up.
Do transformers need working clearance?
Generally, a transformer located near a building requires 4ft clearance from the building vertical surfaces, assuming no windows from grade to 18ft.
How far does a transformer have to be from a wall?
Transformers should be located at least 12 in. to 18 in. away from walls and other obstructions that might prevent free circulation of air through and around each unit, unless the unit is designed for wall mounting and installed per the manufacturer.
Can you put something in front of electrical panel?
Just don’t put anything heavy or unwieldy in front of the panel, Mr. Wismer added. Or “you’ll have to get those Magic Sliders they show on TV for sliding the furniture around.”
