What is embankment and cutting?
Embankments – a construction that allows railway lines to pass at an acceptable level and gradient over low lying ground. Soil cuttings – an excavation that allows railway lines to pass at an acceptable level and gradient through the surrounding ground that is composed entirely or predominantly of soil.
What is the purpose of embankment?
In hydraulic engineering and flood control, embankments are used to hold water back and for flood control respectively. Therefore, the seepage behavior is of primary importance. In road and railway construction, the settlements, particularly differential settlements of embankments are of major concern.

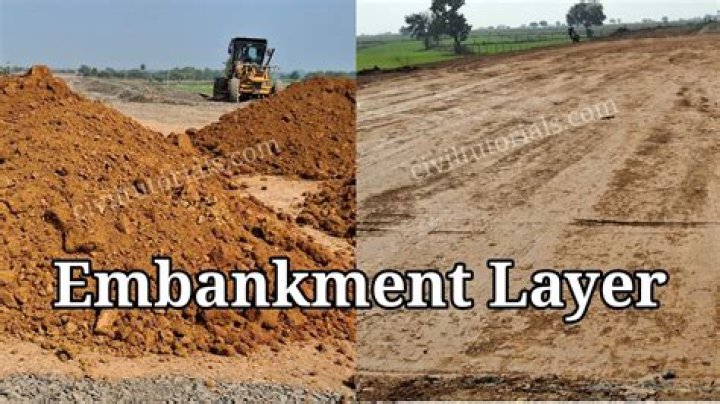

What is an embankment in construction?
The embankment consists of a series of compacted layers or lifts of suitable material placed on top of each other until the level of the subgrade surface is reached. The subgrade surface is the top of the embankment and the surface upon which the subbase is placed.
What is a cutting slope?
A slope cut is used deliberately to cut an entire slope with the assumption to cause an avalanche. The slope cut offers no guarantee, but is only one of many actions used by experts to be safer on their way in the mountains. But experts are sometimes also surprised when cutting a slope.
What is embankment in topography?
Embankment, or wall with roadway holding water back, topographic symbol commonly used in drafting and map making.
How are embankments made?
Embankments are often constructed using material obtained from a cutting. Embankments need to be constructed using non-aerated and waterproofed, compacted (or entirely non-porous) material to provide adequate support to the formation and a long-term level surface with stability.
Where are embankments used?
Embankments are used, for example, to carry railways over river floodplains. Most embankments, however, are placed alongside rivers to hold them in during times when otherwise the rivers might flood. Many are called levees, from the French meaning a raised area).
Why is embankment called embankment?
The Dictionary defines the word Embankment as a wall or bank of earth or stone built to prevent a body of water from flooding an area (i.e. the Victoria Embankment, built between 1865 and 1870, and which runs from Big Ben (Elizabeth Tower) and the Houses of Parliament to Blackfriars Bridge in the City of London and.
What is embankment and subgrade?
The subgrade is that portion of a road- way immediately below the surface, base or sub-base. An embankment is that portion of a roadway which has been built above the original ground by depositing material obtained from cuts or borrow pits. The upper layer of an embankment is also the subgrade.
What is the difference between backfill and embankment?
As nouns the difference between embankment and backfill is that embankment is a long artificial mound of earth and stone, built to hold back water, for protection or to support a road while backfill is the material that has been used to refill an excavation.
Why are railways built on embankments?
A road, railway line, or canal is normally raised onto an embankment made of compacted soil (typically clay or rock-based) to avoid a change in level required by the terrain, the alternatives being either to have an unacceptable change in level or detour to follow a contour.
What is railway cut?
The term cutting appears in the 19th century literature to designate rock cuts developed to moderate grades of railway lines. Railway Age’s Comprehensive Railroad Dictionary defines a cut as “a passage cut for the roadway through an obstacle of rock or dirt”.
