What is geometric stiffness matrix?
The consistent geometric stiffness matrix which is a non-diagonal matrix, is normally used in the finite-element eigenvalue buckling problem. Altering the method to deliver a diagonal (lumped) geometric stiffness matrix simplifies the process of solving the eigenvalue problem and results in computational savings.
What is structural stiffness matrix?
A stiffness matrix, [K], relates point forces, {p}, applied at a set of coordiantes on the structure , to the displacements, {d}, at the same set of coordinates. [K]{d} = {p} (1) The locations and directions of the point forces and displacements are called the coordinates of the structural model.
How do you find the stiffness of a structure?
Expression for the effective stiffness :
- The effective stiffness of cantilever beam is =K=48EI/L^3.
- The effective stiffness of simply supported beam is =K=3EI/L^3.
- The effective stiffness of 2 simply supported beam is =K=3EI/L^3+3EI/L^3.
Why is stiffness matrix singular?
A stiffness matrix that describes the deformation of an elastic body will in general be singular. Because any simple translation has no impact on the stored energy of deformation. As well, a simple rotation will also leave the energy unchanged.
What is the size of stiffness matrix?
The size of the element stiffness matrix is 2 × 2.

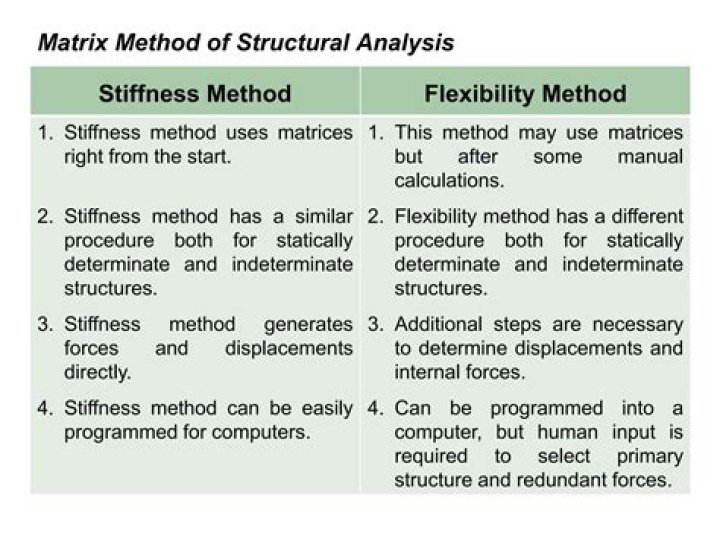

Why stiffness matrix is called displacement method?
Using stiffness properties of members the memberend forces are computed and hence the internal forces through out the structure. Since nodal displacements are unknowns, the method is also called displacement method. Since stiffness properties of members are used the method is also called stiffness method.
What is flexibility matrix method?
Flexibility matrix refers to the adaptability strategy, additionally called the technique for reliable deformations. In this matrix, there are basic unknown member forces. This method is widely used in analyzing beams, frames, and trusses.
What is stiffness structure?
In structural engineering, the term ‘stiffness’ refers to the rigidity of a structural element. In general terms, this means the extent to which the element is able to resist deformation or deflection under the action of an applied force.
