What is gradually varying flow?

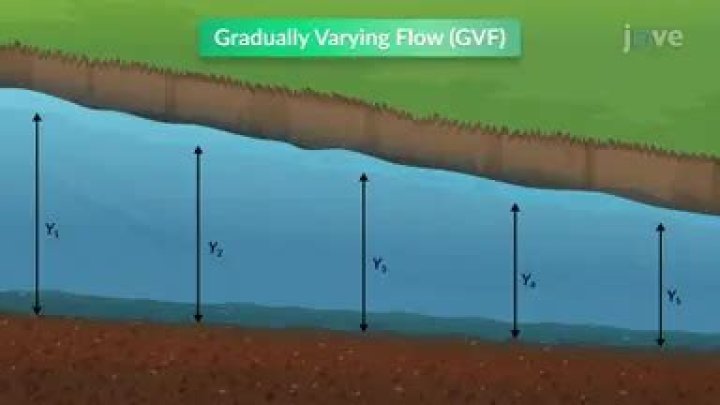

Gradually Varied Flow. ○ In this section we consider gradually varied. flow (GVF), which is a form of steady. nonuniform flow characterized by gradual variations in flow depth and velocity (small slopes and no abrupt changes) and a free surface that always remains smooth (no discontinuities or zigzags).
What is gradually varied flow classify different types of flow profiles with diagram?
10. A gradually varied flow profile is classified based on the channel slope, and the magnitude of flow depth, y in relation to yn and yc . The channel slope is classified based on the relative magnitudes of the normal depth, yn and the critical depth, yc .
What is gradually varied flow in hydraulics?
Rapidly Varied Flow (RVF) is a significant change in water depth or velocity of flow over a short distance. This distance can be a few times the water depth. Gradually Varied Flow (GVF) is the flow where the water depth changes gradually over a large distance.
What are the assumption of gradually varied flow?
Equation for Gradually varied flow: Before deriving an equation, following assumptions are made: 1] Bed slope of the channel is small. 3] Accelerative effect is negligible. 5] Roughness co-efficient is constant for the length of the channel.
What is the difference between rapidly varied flow and gradually varied flow?
Rapidly varied flow (RVF) occurs over a short distance near the obstacle. Gradually varied flow (GVF) occurs over larger distances and usually connects UF and RVF.
Can uniform flow be gradually varied?
In Chapter 4, we discussed uniform flowin which the flow depth remains constant with distance. As we discussed in Chapter 1, such flows are called gradually varied flows if the rate of variation of depth with respect to distance is small, and rapidly varied flows if the rate of variation is large.
When so SC and yn YC it is called?
Explanation: When the slopes have a condition of So > 0 and Yn < Yc, it is called as steep slope. It is denoted as ‘S’. Steep slope is classified into three zones.
What is called afflux in gradually varied flow?
If the depth of flow in a channel changes gradually over a long length of a channel the flow is said to be gradually varied flow. Afflux is defined as the maximum increase in water level due to obstruction in the path of flow of water.
What is CDL and NDL?
and critical flow (CDL, critical depth line) are shown for reference. The NDL and the CDL. shown are parallel to the axis; the NDL for the horizontal slope lies at an infinite elevation and. one for the adverse slope is not defined.
How do you measure tailwater depth?
Tailwater is defined as the depth of flow in a channel immediately downstream of a drainage facility….The calculation process is:
- Choose a depth of flow.
- Calculate the wetted perimeter.
- Calculate the cross-sectional area.
- Calculate the hydraulic radius (Step 3 / Step 2)
- Calculate Q, the flow.
- Repeat.
What is gradually varied flow in open-channel?
Nonuniform open-channel flows for which the changes in depth and velocity are slow enough in the downstream direction that the vertical distribution of fluid pressure from the free surface to the bottom is not much different from hydrostatic are called gradually varied flows.
