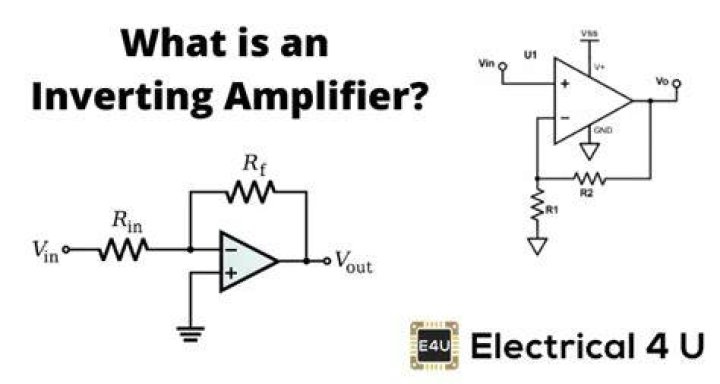

What is op-amp inverting amplifier circuit?
An inverting amplifier (also known as an inverting operational amplifier or an inverting op-amp) is a type of operational amplifier circuit which produces an output which is out of phase with respect to its input by 180o.
How op-amp can be used as an inverting amplifier?
It is called Inverting Amplifier because the op-amp changes the phase angle of the output signal exactly 180 degrees out of phase with respect to input signal. Same as like before, we use two external resistors to create feedback circuit and make a closed loop circuit across the amplifier.
Why is inverting amplifier used?
Inverting Op-Amps are used mainly for high frequency applications where high input impedance is not a requirement. This is because, slew rate of Inverting Op-Amp is high, compared to non-inverting configuration.
What is the difference between inverting and non-inverting amplifier?
The amplifier which has 180 degrees out of phase output with respect to input is known as an inverted amplifier, whereas the amplifier which has the o/p in phase with respect to i/p is known as a non-inverting amplifier.
What is the formula of inverting amplifier?
One final point to note about the Inverting Amplifier configuration for an operational amplifier, if the two resistors are of equal value, Rin = Rƒ then the gain of the amplifier will be -1 producing a complementary form of the input voltage at its output as Vout = -Vin.
What are two uses for op amps?
Op amps are used in a wide variety of applications in electronics. Some of the more common applications are: as a voltage follower, selective inversion circuit, a current-to-voltage converter, active rectifier, integrator, a whole wide variety of filters, and a voltage comparator.
What is inverting and non-inverting op-amp?
What is the inverting & non-inverting amplifier? The amplifier which has 180 degrees out of phase output with respect to input is known as an inverted amplifier, whereas the amplifier which has the o/p in phase with respect to i/p is known as a non-inverting amplifier.
What is an op amp describe op amp in inverting and non-inverting modes?
Inverting & Non-Inverting Amplifier Basics. An operational amplifier is basically a three-terminal device consisting of two high impedance inputs, one called the inverting input (–) and the other one called the non-inverting input (+).
Which is inverting terminal of op amp?
One of the inputs is called the Inverting Input, marked with a negative or “minus” sign, ( – ). The other input is called the Non-inverting Input, marked with a positive or “plus” sign ( + ). A third terminal represents the operational amplifiers output port which can both sink and source either a voltage or a current.
