What is tan delta and capacitance test?
Electrical properties of insulating systems change due to age and continuous electrical stress. Tan-Delta, also called Loss Angle or Dissipation Factor testing, is a diagnostic method of testing electrical equipment to determine the integrity of the insulation.
What are the equipment tested for tan delta?
The requirements necessary for this test such as cable, potential transformer, bushings, current transformer, and winding on which this testing is conducted has to be initially separated from the system. The minimal frequency level of test voltage is applied along with the equipment where the insulation to be analyzed.
What is tan delta of capacitor?

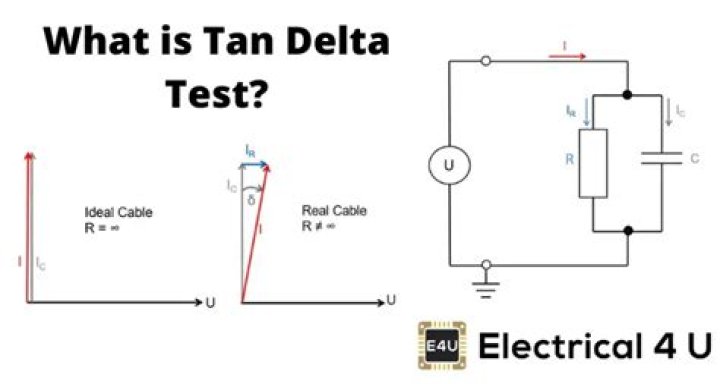

Tan delta is the ratio between the resistive current and capacitive current. Simplified circuit depicting a cable as 2 elements (resistor and capacitor). If we consider the resistance of an ideal cable to be infinite, then the total current will be purely capacitive and 90° phase shifted to the applied voltage.
What is the difference between tan delta test and insulation resistance test?
RE: Delta tan Delta test versus Megger Test Megger test (insulation resistance test) is a very simple easy test. Tan delta (and particularly tipup) takes more time, more expensive equipment, a little harder to interpret. It may make more sense to invest this time in larger higher voltage motors.
What is tan delta kit?
Transformer Bushing Tan Delta system is similar to the CT Tan Delta Test . Tan delta is the Ratio of the Resistive Component to the Capacitive Component of the Leakage Current. It should be minimum and ideally equal to zero.
What is the safe limit of tan delta?
4. Capacitive Voltage
| Sr. No. | Equipment / test data | Permissible limits |
|---|---|---|
| A) | Tan Delta | 0.007* at 20 Deg. C |
| B) | Capacitance | Within +10%/-5% of the rated value |
| C | Contact resistance of terminal connector | 10 M-Ohm per connector |
| D) | IR Value | IR Value |
How do you test tan delta?
A Tan Delta test is performed by applying an ac voltage to a test cell of known gap, measuring the total current flow through the oil, and separating and comparing the reactive and resistance portions of the current passing through the oil.
How do you interpret tan delta?
If the tan delta numbers indicate good cable insulation, the test voltage may be raised up to 1.0, 1.5U₀ and 2 U₀. The tan delta numbers at the higher voltages are compared to those at lower voltages and an analysis is made.
What is the purpose of the tan delta?
Tan Delta, also called Loss Angle or Dielectric Dissipation Factor (DDF) or Power Factor (PF) testing, is an electrical dielectric test on the insulating oil used to determine its quality. The test is performed at two temperatures.
What is negative tan delta?
Negative tan delta is a serious concern to engineers; its importance is to keep the quality control of the high voltage equipment on a high level. The error happens occasionally, it must be determined whether it is significant to include into the insulation system.
Is standard for tan delta test?
The frequency range for tan delta test is generally from 0.1 to 0.01 Hz depending upon size and nature of insulation. There is another reason for which it is essential to keep the input frequency of the test as low as possible. As we know, That means, dissipation factor tanδ ∝ 1/f.
