What is the command for construction line in AutoCAD?
Step 2: You can find the construction line command from the Draw menu of the Home tab of this software with this type of line icon. Step 3: Or you can use short cut command for the construction line, which is type XL, then press enter button of the keyboard and your command will be active.
Where is line command in AutoCAD?
Line Command
- Open the AutoCAD software.
- Select the Line icon from the ribbon panel or type L or Line and press Enter on the command line.
- Specify the starting point and endpoint using the cursor on the workspace or drawing area, as shown in the below image:
- Press Enter or Esc to exit.
How do you draw a construction line?
To draw a construction line, click on the ‘Place construction line’ tool and start drawing the first line by clicking anywhere in the active drawing plane then move the mouse cursor and click to place the line end-point, you can use point snaps, direction snaps, drawing guides and the protractor to help with alignment.
What are the commands used in AutoCAD?
Drawing
| SHORTCUT/ COMMAND | DESCRIPTION |
|---|---|
| L/ LINE | Create a simple line |
| MI/ MIRROR | Produce a mirror copy of an object |
| MLINE | Create multiple parallel lines |
| PL/ PLINE | Make a polyline |
What is the shortcut for construction line?
Type XL on the command line and press Enter. Type A on the command line or command prompt and press Enter. Specify the angle of XLine (Construction line).
How do you trim a construction line in AutoCAD?
To trim objects, select the boundaries and press Enter. Then select the objects that you want to trim. To use all objects as boundaries, press Enter at the first Select Objects prompt.
How do I run a line command in AutoCAD?
To open the Command line, type CommandLine anywhere in your CAD interface. Then press Enter. The Command line will reappear. You can also open the Command line by holding down the CTRL + 9 keys.
How do I open a command line in AutoCAD?
To Work With Opening Command Windows

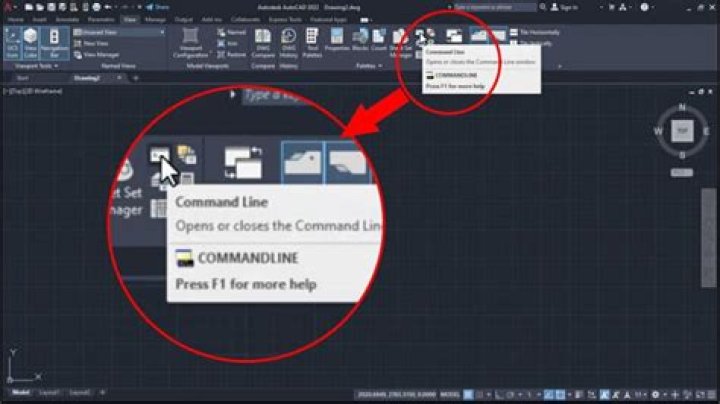

- Click View tab Palettes panel Command Line. Find.
- Press Ctrl+9.
- At the Command prompt, enter COMMANDLINE or COMMANDLINEHIDE.
How do you draw a construction line in AutoCAD?
To Work With Construction Lines
- Click Home tab Draw panel Construction Line. Find.
- Specify a point to define the root of the construction line.
- Specify a second point through which the construction line should pass.
- Continue to specify construction lines as needed.
- Press Enter to end the command.
What is a construction line in engineering?
Construction lines help lay out small or detailed parts of a design on a sheet. You can draw them automatically one at a time, in sets of parallel lines, or freehand, point by point. The automatic construction tools may create construction lines that extend from one side of the sheet to the other.
What is the function of line command?
A text-based user interface to the computer. The command line is a blank line and cursor on the screen, allowing the user to type in instructions for immediate execution.
What is the function of line command in AutoCAD?
The basic function of the Command line is the ability to type keyboard commands. To type a command, place your cursor in the Command line and type that command. For example, if you want to draw a line, begin typing the word “Line” in the Command line.
