What is the minimum depth of deck footing?

What is the minimum depth of deck footing?

12 inches

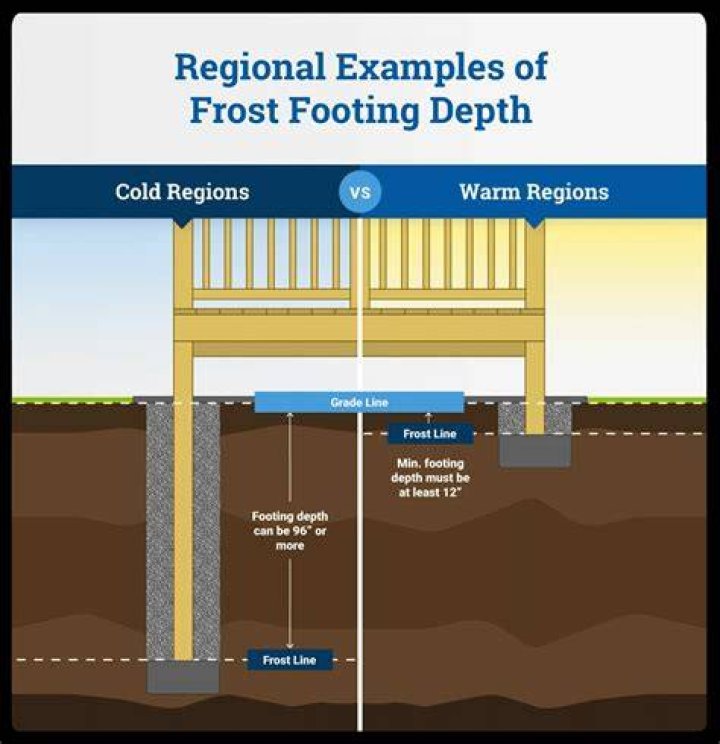

By code, the bottom of a footing must be at least 12 inches deep and below the local frostline—whichever is deeper—and bear on stable, undisturbed soil that is free of organic matter.

How deep and wide do deck footings need to be?

Depth: Footings should extend to a minimum depth of 12 inches below previously undisturbed soil. Footings also must extend at least 12 inches below the frost line (the depth to which the ground freezes in winter) or must be frost-protected. Width: Footings should have a minimum width of 12 inches.

What size footing is needed for a deck?

FOOTINGS: – Poured concrete footings should be a minimum of 8” wider than the posts (4×4 post – 12” min. width, 6×6 post – 14” min. width), a two level deck or deck with roof – 24”x24”. – The bottom of the footings must be a minimum of 36” below finish grade level.

How deep do deck supports need to be?

Deck footings need to be dug below the frost line. Make sure the bottoms and sides of the holes are compact and solid before pouring your concrete. You can dig the footings 6″ deeper than the frost line.

Can you pour a footing without forms?

Regardless of the foundation wall thickness, you probably require a footing width of 24″, so your excavation will need to be at least 24″ wide and 48″ deep. You may be able to pour the footings without forming them up but the walls need forms or be built up beyond grade with block.

Can you pour concrete around existing deck posts?

the concrete around the post at the top (slab or patio) will cause two problems, 1 it makes a weak spot that will crack or 2 as the cocrete expands and contracts with the weather it could shear the post and cause the structure to fail. Yes, I agree.

Do footings always require formwork?

More than half of the footings are done without formwork. Although the footings done in the latter manner are time saving and don’t require backfill (given the excavator makes a pretty decent trench shape), are their any cons for this from engineering standpoint?

Can you pour concrete against dirt?

Long story short, yes you can pour concrete over dirt.

What should the depth of a deck footing be?

Regardless of reaching solid ground before a minimum depth of 600mm, the deck footing should be at 600mm deep (always dig bigger, never smaller). If your engineer has specified a minimum depth, you need to dig to that depth.

How to calculate the load of a deck?

For example, if you are building a 10×10 deck attached to a house with two footings on the corners, you could calculate the loads for the footings in the following way. First, draw a line dividing the deck into two halves between the house and the footings.

How big of a hole do you need to dig for a deck?

Solid ground does not necessarily mean digging until you reach rock, however, at times you may reach rock. When solid ground is reached, it is recommended to dig an additional 50mm into the solid ground. Regardless of reaching solid ground before a minimum depth of 600mm, the deck footing should be at 600mm deep (always dig bigger, never smaller).

How big of a base do you need for a deck?

For a quick and dirty concrete foundation, this method can do the trick. You can get away with usually a 15″x15″ base and then at least 6″ thick so you don’t crack the deck footing. That is assuming you are using a 4×4 which is 3.5″ square.

How deep do my footings need to be for a deck?

When solid ground is reached, it is recommended to dig an additional 50mm into the solid ground. Regardless of reaching solid ground before a minimum depth of 600mm, the deck footing should be at 600mm deep (always dig bigger, never smaller). If your engineer has specified a minimum depth, you need to dig to that depth.

What size footings are required for decks?

Sizing Deck Footings Assuming a minimum soil bearing capacity of 1,500 psf, 8-inch-diameter concrete piers bearing on square footings measuring 2 feet on a side and 9 to 11 inches thick are adequate for most single-story decks where beams are spaced 14 feet apart or less and joist spans are 14 feet or less (see table below).

How many footing do you need for your deck?

For an attached 12 x 12′ deck, you’ll need at least 3 footings, plus at least 2 more if you’re planning on building stairs with it. If your deck will be a different size, it’s easy to figure out how many you’ll need. Just decide its size and shape, then calculate and measure each element of the design as detailed step-by-step below.

Do deck footings need to be spaced evenly?

If you’re building a simple deck, footings and posts should be placed less than 8 feet apart. However, if your deck will include a hot tub or roof, you must support that weight with additional footings.
