What size is #40 roller chain?

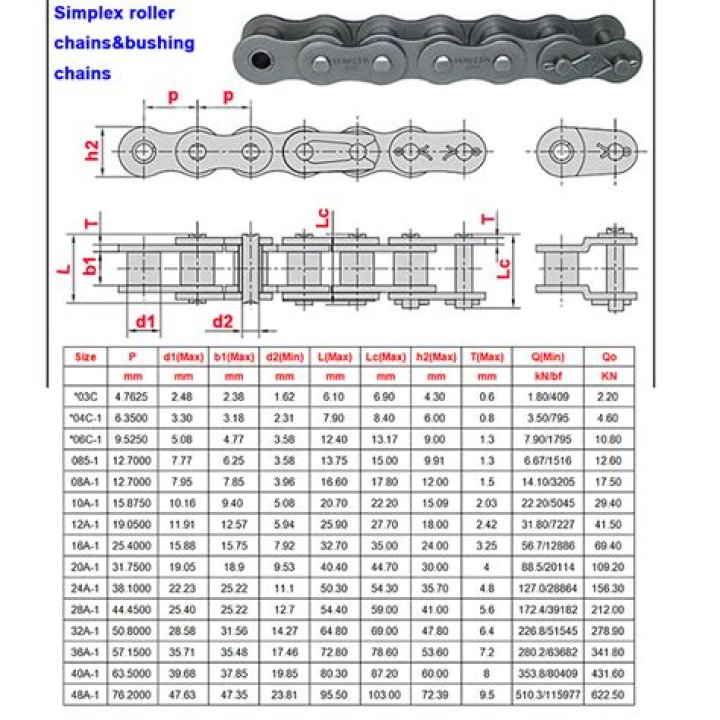

#40 Roller Chain Dimensions
| Size | Pitch (P) | Roller Diameter (D) |
|---|---|---|
| 40-1 | 0.50″ | 0.312″ |
What size is 420 roller chain?
420 Non-Standard Roller Chain
| Part No. | 420 |
|---|---|
| Plate Thickness (T) | 0.060 |
| Overall Width (F) | 0.288 |
| Overall Width (G) | 0.344 |
| Unit of Measure (Inches or Millimeters) | in |
What is a 25 roller chain?
#25 roller chain is a 1/4″ pitch ANSI Standard roller chain designed for light-duty or space confined applications. It’s the smallest size roller chain on the ANSI spectrum of roller chains but offers ample performance, strength, and durability for its small form factor.
Is 40 and 420 chain the same?
#420 will have more strength than the #41 chain because the side plates will be taller. #40 will be the beefiest chain in this class. This will help with thicker sprockets since there is more room between the side plates. #41 will look just like the #420 chain, but will stand shorter.
Is a 420 chain same as 40?
We use the #420 chain the most out of these 3. It’s not as wide (from side plate to side plate) as the #40 chain which helps to not slap your driven pulley or frame if it’s in a tight fit. #420 will have more strength than the #41 chain because the side plates will be taller.
What is the difference between a 415 and 420 chain?
#415 and #415H chain is also known as 1/2″x3/16″ chain. #420 chain is the exact same size as #41 chain however it has thicker pins which makes it stronger. #420 chain is used on motorcycles, mini bikes, go karts, and motorized tricycles.
How strong is 25 chain?
Chain standards
| Size | Pitch | Minimum Ultimate Tensile Strength |
|---|---|---|
| 25 | 0.250 in (6.35 mm) | 780 lb (350 kg) |
| 35 | 0.375 in (9.53 mm) | 1,760 lb (800 kg) |
| 41 | 0.500 in (12.70 mm) | 1,500 lb (680 kg) |
| 40 | 0.500 in (12.70 mm) | 3,125 lb (1,417 kg) |
Are bike chains universal?
All modern bicycle chains are made to the “one-half inch pitch” standard, meaning from rivet to rivet is nominally 0.5 inches. The sprocket teeth are cut for this same one-half inch standard to accept bicycle chains. However, this does not mean all makes and models of chains are interchangeable.
