Which of the material can be used for insulation of steam pipe line?

Traditionally, stay-in-place fiberglass insulation is used to insulate steam pipes, particularly for residential purposes but also for commercial use. The fiberglass insulation comes in varying thickness from ½” to 2”+ depending on the size of the pipe and its operating temperature.

What is a common material used for pipe insulation?

Common fibres used in piping insulation are Silica, slag wool, rock wool, and alumina-silica. Among these, Glass fibre and Mineral Wool are the two most widely used piping insulations of this type. Their fibres are normally bonded with organic binders for structural integrity.

What is the most common insulating material?

Fiberglass (or fiber glass)–which consists of extremely fine glass fibers–is one of the most ubiquitous insulation materials. It’s commonly used in two different types of insulation: blanket (batts and rolls) and loose-fill and is also available as rigid boards and duct insulation.

Why is steam pipes wrapped with insulation material?

The colder the pipes are, the faster the steam will condense on them, and that’s why the builders of old houses covered the steam pipes with an asbestos “blanket.” Asbestos insulation keeps the steam hot. It prevents it from condensing too soon. It’s like a thermos bottle.

Which is the best pipe insulation?

For many residential plumbing applications a PE pipe insulation product like Tubolit® and Tundra® is the perfect option. Economical and easy to install, PE foam insulation will prevent pipes from freezing and keep hot pipes hot and cold pipes cold.

What is pipe insulation called?

Polyethylene. Polyethylene is a flexible plastic foamed insulation that is widely used to prevent freezing of domestic water supply pipes and to reduce heat loss from domestic heating pipes.

What is the most used insulator?

Blanket insulation — the most common and widely available type of insulation — comes in the form of batts or rolls. It consists of flexible fibers, most commonly fiberglass. You also can find batts and rolls made from mineral (rock and slag) wool, plastic fibers, and natural fibers, such as cotton and sheep’s wool.

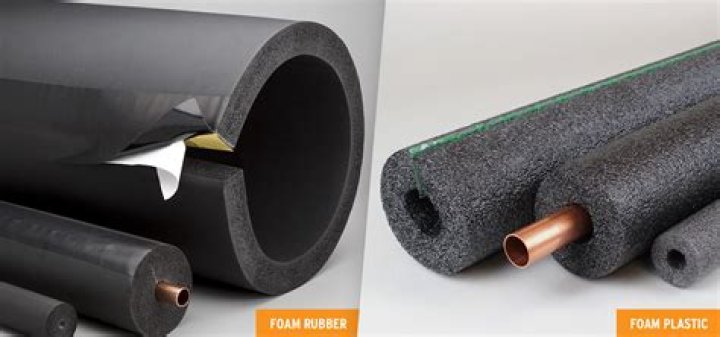

What pipe insulation is best?

Arguably, self-seal rubber insulation offers the best value for the price. It is more durable and energy efficient than other pipe insulation materials, and it expands and contracts as temperatures shift. It can also be safely installed over heat cables or heat tape.

How do I choose a pipe for insulation?

Before you choose the type of Insulation, you’ll need to know two crucial factors – your pipe bore (the diameter) and the thickness of the insulation you require (“the wall thickness”) The pipe diameter (or bore) can be measured in imperial sizes (in inches) or metric sizes (in mm).

How long does rubber pipe insulation last?

In fact, only 3 percent of its size will change with the difference in temperature. PE foam lasts for about six years. This is in contrast to 10 years for rubber. Foam insulation is thicker than most rubber insulation.

What kind of insulation do you need for steam pipes?

The pipes you’ll need to insulate can vary from 1/2 inch to 6 inches in diameter. There is a variety of material you can use to insulate steam pipes, such as polyethylene, neoprene foam and fiberglass. Some other steam pipe insulation products include foil-encased bubble wrap, spray-on ceramic coatings and closed-cell rubber insulation sheets.

What kind of insulation is used in mineral fiber pipes?

Mineral fiber pipe insulations systems are also available with “self-drying” wicking material that wraps continuously around pipes, valves, and fittings. These products are intended to keep the insulation material dry for chilled water piping in high-humidity locations.

What are the different types of piping insulation?

Piping Insulation System 1 Protective Coating 2 Vapor Barrier 3 The cladding of the metallic sheet. 4 Spacers to enable cladding to retain its shape. 5 Packing to fill the cavities or voids, if any. More …

Which is the best material for Mechanical insulation?

Vermiculite, or expanded mica, is flake insulation. Granular insulations are composed of small nodules that contain voids or hollow spaces. These materials are sometimes considered open cell materials since gases can be transferred between the individual spaces. Calcium silicate and molded perlite insulations are considered granular insulation.

What kind of insulation is used for steam pipes?

What kind of material is used for steam mains?

The same material may be used for condensate lines, although copper tubing is preferred in some industries. For high temperature superheated steam mains, additional alloying elements, such as chromium and molybdenum, are included to improve tensile strength and creep resistance at high temperatures.

What is the purpose of insulation in pipes?

Piping insulation thickness Calculation Pipe Insulations are materials or combinations of materials wrapped around the pipe which retard the flow of heat energy. Pipe insulation reduces energy losses to a great extent and thereby reduce the energy cost.
